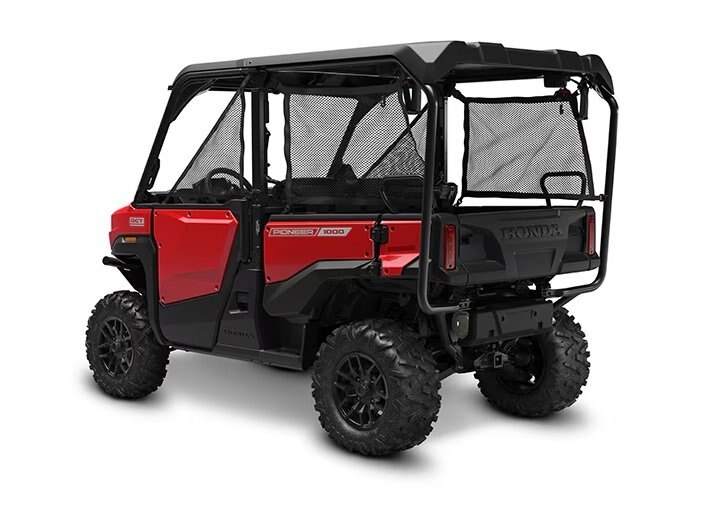

2026 Honda Pioneer 1000-5P DLX Standard

Name: 2026 Honda Pioneer 1000-5P DLX Standard
Brand: Honda
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

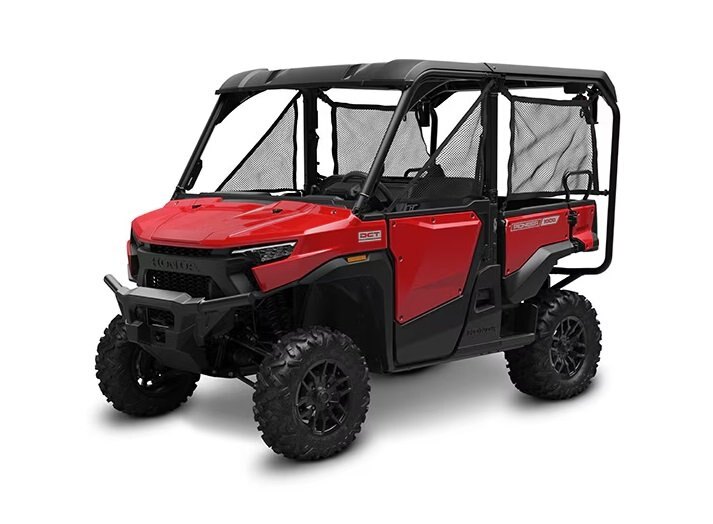

Honda Pioneer 1000-5P DLX Side-by-Side

The 2026 Pioneer 1000-5P DLX is designed to balance versatility, value, and performance through a comprehensive redesign aimed at enhancing the off-road experience. This latest model introduces a throttle-by-wire system and advanced drive modes designed to adapt the ride to the task at hand. Engineering updates, such as the enhanced Electric Power Steering contribute to driving precision and comfort. With the integration of Honda Pro-Connect® mounting points in the bed and expanded under-seat storage for added convenience, the Pioneer 1000-5P DLX stands out as a highly capable and refined off-road vehicle ready to go anywhere and tackle any task.

Specifications

Model

Pioneer 1000

Category Name

UTV - Side x Side

Year

2026

Sale Type

New

Manufacturer

Honda

Color

Hero Red

Tires

Front: 27 x 9 - 14 Rear: 27 x 11 - 14

Width

1,626 mm (64 in)

Brakes

Front: Dual 230 mm discs Rear: Dual 230 mm discs

Height

2,017 mm (79.4 in)

Length

3,020 mm (118.9 in)

Wheelbase

2,037 mm (80.2 in)

Curb Weight

871 kg (1,920 lb)

Engine Type

Liquid-cooled longitudinally mounted parallel-twin cylinder

Final Drive

Direct front and rear driveshafts

Valve Train

Unicam® SOHC; 4 valves per cylinder

Bed Capacity

454 kg (1,000 lb)

Displacement

999 cc

Transmission

Fully automatic, Six-speed plus reverse Dual Clutch Transmission with Sport Mode and Manual Mode with Paddle Shifting. High/Low Range Sub-transmission. Four drive modes include Turf, 2WD, 4WD, and 4WD with differential lock.

Bore & Stroke

92 mm x 75.1 mm

Fuel Delivery

PGM-FI electronic fuel injection with 46 mm throttle body

Fuel Capacity

30.7 liters, including 7.2-liter reserve

Power Steering

Standard

Rear Suspension

Independent double wishbone; 255 mm (10.04 in) travel

Towing Capacity

1,134 kg (2,500 lb)

Front Suspension

Independent double wishbone shocks; 268 mm (10.6 in) travel

Ground Clearance

329 mm (13 in)

Compression Ratio

10.0:1

engine & drivetrain

Powerful Performance

Powerful 999 cc parallel-twin cylinder engine delivers strong performance. Especially through the midrange and top end—you’ll enjoy rapid acceleration and impressive overall power.

New Throttle by Wire

Our new throttle-by-wire system doesn’t just make acceleration smoother—it unlocks a host of advanced features including new drive modes. You’ll notice the difference immediately: smoother shifts, better engine response, and a driving experience that feels more connected than ever.

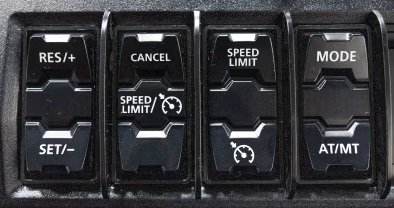

New Vehicle Speed Controls

Thanks to throttle by wire, the Pioneer 1000-5P DLX offers cruise control, a variable speed limiter, and an optional speed-limit key. Cruise control is ideal for traveling between job sites, while the variable speed limiter helps with tasks like spraying or mowing. The speed-limit key restricts speeds to 40 km/h for added peace of mind with employees or newer operators.

Fully Automatic Six-Speed DCT

Featuring an all-gear-driven six-speed Dual-Clutch Transmission (DCT), you can select manual mode or fully automatic operation. Additionally, Sport mode increases the fun by holding the shift points for a sportier, more dynamic ride.

Advanced Transmission Logic

The DCT’s smart transmission logic adapts to your driving style. Easier driving results in earlier shifts for a quieter experience, while more aggressive inputs hold gears longer for higher RPM performance. It also provides true engine braking on descents.

New Selectable Drive Modes

Choose between four drive modes (Comfort, Normal, Sport and Tow/Haul) to tailor power delivery, shift timing, and acceleration to your needs. It’s designed to deliver both strong performance and a smooth ride in any condition.

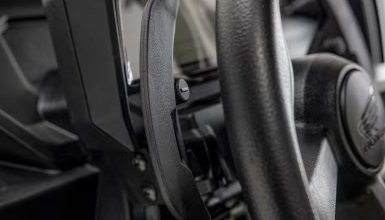

Paddle Shifting

Steering column-mounted paddle shifters bring added control and performance. In Manual mode, you can shift gears without removing your hands from the wheel, and in Automatic mode, you can quickly override the current gear with a quick up or down shift.

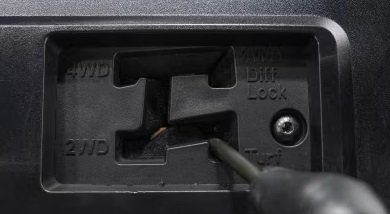

Turf/2WD/4WD/Diff Lock

To avoid damaging sensitive surfaces, select Turf Mode. For maximum traction, switch to 4WD. And if you need the most power for all four wheels, lock the front and rear differentials. The best part is that you can easily do it with a single lever.

High/Low Subtransmission

A 42% reduction between High and Low range provides the torque you need across all six gears—ideal for challenging terrain, steep climbs, or hauling heavy loads.

chassis & suspension

Improved Electric Power Steering

The Electric Power Steering (EPS) motor now delivers 50% more torque and is tuned for enhanced comfort—especially when carrying passengers or cargo. It also maintains consistent steering effort across rough or muddy terrain.

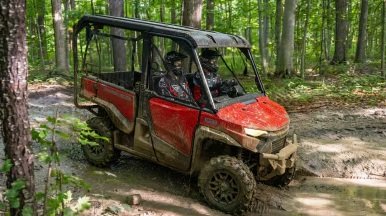

Superior Handling & Ride Comfort

Rugged tires, long-travel independent front and rear suspension, and a refined driveline work together to deliver confident handling and a comfortable ride.

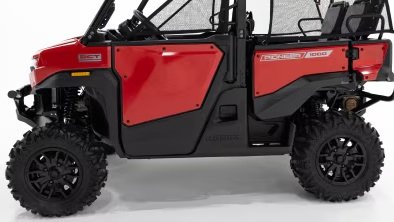

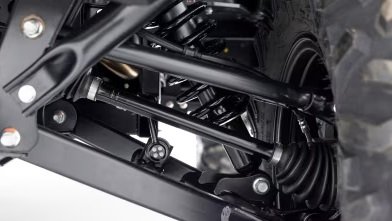

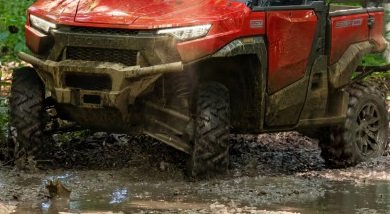

Independent Front & Rear Suspension

The dual A-arm suspension setup offers 10.6 inches of front travel and 10 inches in the rear, providing excellent traction, generous ground clearance, and a smooth ride.

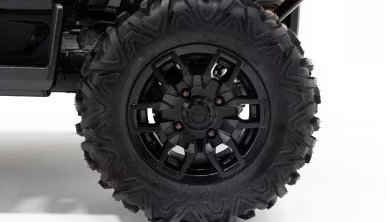

OTR Dirt Master Tires

The Pioneer 1000-5P DLX features high-performance OTR Dirt Master tires, engineered for dependable off-road grip and long-term durability. Our Pioneer 1000-5P DLX has 14-inch aluminum wheels with an all-black finish.

Self-Load Leveling Rear Suspension

The load-leveling suspension adjusts to weight changes, ensuring ground clearance, comfort, and handling automatically.

Sophisticated Chassis

Beyond what you can see, thoughtful engineering makes a difference. Along with ample suspension travel and ground clearance, the engine and exhaust are rubber-mounted to help reduce cabin vibration.

Braking System

The parking brake system utilizes a straightforward, single-cable design that ensures easy adjustment and long-term reliability, perfectly complementing the durable disc brakes that deliver consistent stopping power. Engineered to perform even in dusty or debris-filled environments, this combined braking setup provides dependable control and peace of mind on every trail.

additional features

Hauling and Storing Made Easy

The 1,000 pound tilt bed and hydraulic-assist lever make unloading fast and easy. The new Pro-Connect® mounting system creates tool-free accessory installation, elevated bed lighting brightens the cargo area, and underseat storage keeps gear close at hand.

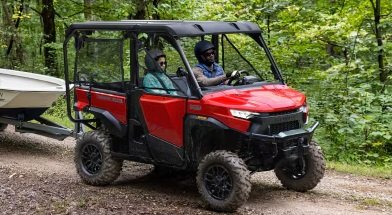

2,500-Pound Towing Capacity

With the ability to tow up to 2,500 pounds, Pioneer 1000 models are ready to handle larger tasks without requiring additional heavy equipment.

Updated Roll Over Protection

Our new formed Roll Over Protective Structure (ROPS) makes it easier to add accessories.

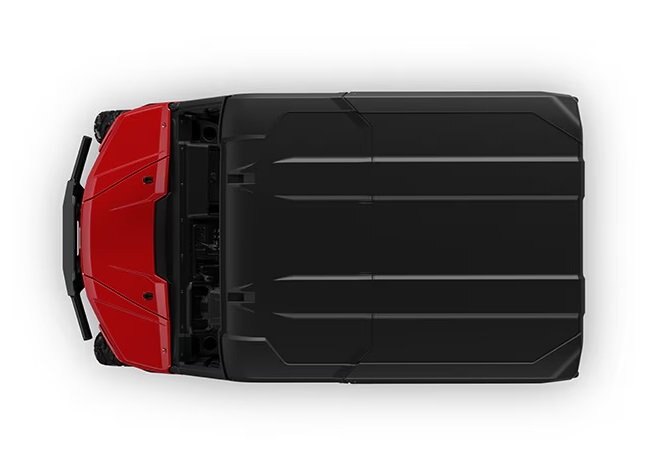

New Standard Roof

The rigid roof now comes as a standard feature for better weather and sun protection.

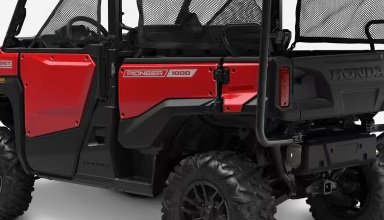

QuickFlipTM Seating

Experience ultimate flexibility in seating options. In addition to the comfortable three passenger contoured bench seat up front, the bed incorporates a pair of QuickFlipTM seats that flip up or fold down independently in seconds. Up, they provide secure seating for one or two additional passengers; down, you get a flat cargo bed for utility use.

New Connected Door Nets

Our new connected door nets make safe operation easier and hassle-free. Now there’s no need to clip or unclip a door-net buckle when you open or close the front doors.

Comfortable Refined Interior

Major changes to the interior include a new instrument panel, and way more comfort thanks to better sealing and isolation from engine heat, as well as a USB-C port, multiple cup holders and under dash storage.

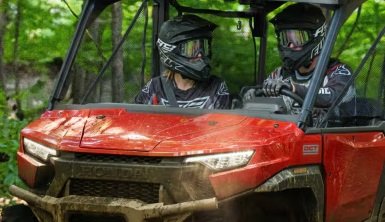

Bright Visibility

LED headlights deliver a brighter, optimized beam for superior nighttime visibility and a modern look.

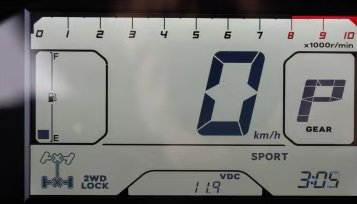

Intelligent Electronics

The Pioneer’s LCD display is conveniently mounted to the steering column and moves along with the adjustable steering wheel for added visibility allowing you to keep track of your speed, RPMs, and more.

Easy Accessory Integration

Prewired switches and a dedicated fuse box make adding accessories fast and clean. The Pioneer 1000-5P DLX includes a customizable switch panel for complete control.

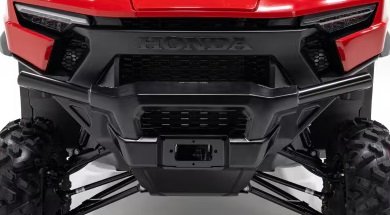

Rugged Appearance

Redesigned grille and updated graphics create a bold, professional look. The relocated fuel cap allows quick refueling without opening doors.

Custom Fit

The 2026 Pioneer 1000 offers 64 new accessories, 85 total options, all engineered to meet Honda’s high standards for any task or adventure.

Tool-Free Air Filter Replacement

The tool‑free air‑filter design reduces maintenance time and complexity, allowing filter changes to be completed in as little as 1 minute.
