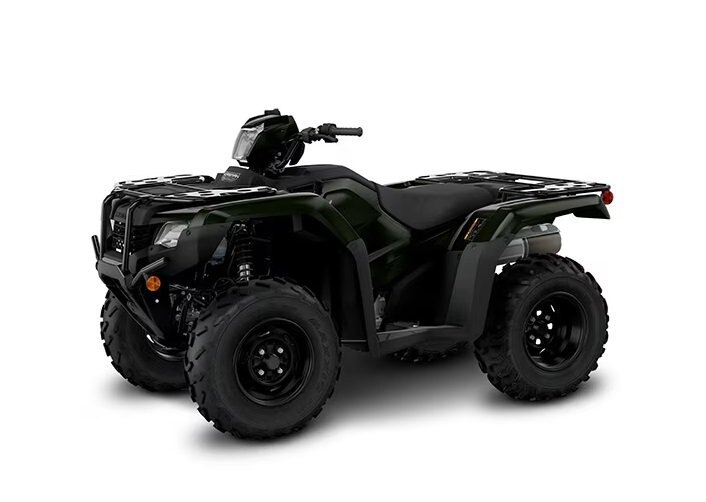

2027 Honda Foreman 520 Manual Shift Black Forest Green

Name: 2027 Honda Foreman 520 Manual Shift Black Forest Green
Brand: Honda
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

Your New Favourite Co-Worker.

Recognized for its durable design and reliable performance, the Honda Foreman is a versatile partner for any task. It offers a blend of capability and comfort, ensuring you stay productive in demanding environments. For those who prioritize proven engineering and longevity, the Foreman is built to deliver.

Specifications

Model

Foreman

Category Name

ATVs

Year

2027

Sale Type

New

Manufacturer

Honda

Color

Black Forest Green

Tires

Front: 25 x 8-12 Rear: 25 x 10-12

Width

1,205 mm (47.4 in)

Brakes

Front: dual 190 mm discs Rear: 160 mm sealed mechanical drum

Length

2,106 mm (82.9 in)

Wheelbase

1,269 mm (50 in)

Curb Weight

289 kg (637 lb)

Engine Type

Liquid-cooled longitudinally mounted single-cylinder

Final Drive

2WD/4WD; direct front and rear driveshafts with switchable 2WD/4WD and torque-sensing/locking front differential

Valve Train

OHV, two valves

Displacement

518 cc

Transmission

Five-speed with automatic clutch, reverse and ultra-low first gear

Bore & Stroke

96.0 mm x 71.5 mm

Fuel Delivery

PGM-FI electronic fuel injection

Fuel Capacity

14.7 litres, including 4.9 litre reserve

Rack Capacity

Front rack: 40 kg (88 lb) Rear rack: 80 kg (176 lb)

Rear Suspension

Swingarm with single adjustable hydraulic shock; 185 mm (7.3 in) travel

Towing Capacity

385 kg (850 lb)

Front Suspension

Independent double-wishbone; 185 mm (7.3 in) travel

Ground Clearance

190 mm (7.5 in)

Compression Ratio

9.5 : 1

engine & drivetrain

Maximum efficiency

Feel the Foreman 520’s power with its liquid-cooled 518 cc four-stroke engine is longitudinally mounted, allowing direct driveshaft alignment to both front and rear wheels for maximum drivetrain efficiency.

Compact Engine

Overhead-valve design provides compact engine dimensions for improved ground clearance while maintaining a broad, easy-to-use powerband.

Reduced vibration

Rubber-cushion engine mounting and gear-driven counter-balancer reduce vibration.

Easy Start

Convenient electric starting gets you going quickly and easily.

Recoil Starter

Also equipped with a recoil starter as a back-up.

Fuel Efficient

Programmed Fuel Injection (PGM-FI) system improves power delivery and throttle response, and increases fuel efficiency for extended range.

Excellent Drivability

Super-heavy-duty automatic clutch with low-rpm engagement for excellent drivability and towing capacity. Rugged five-speed transmission with ultra-low first gear features manual foot shifting with automatic clutch.

Tackle any Terrain

2WD/4WD system offers three drive modes: 2WD; 4WD with torque-sensing front differential; and 4WD with locked front differential to optimize traction. The system also features a Speed Override mode that can be engaged when the front differential is locked, which allows increased wheel speed under severe conditions, such as deep mud.

Quiet operation

Stainless-steel exhaust system includes a USDA-qualified spark arrester/muffler designed for quiet operation without servicing for long-lasting performance.

chassis & suspension

Lightweight Strength

Durable double-cradle steel frame developed with Computer Aided Engineering is both rigid and lightweight for precise handling and a smoother ride.

Great Control

Both front and rear suspensions offer 185 mm (7.3 in) of travel for a plush, controlled ride. Adjustable spring preload on all shocks allows suspension to be tuned to match varying loads and riding conditions.

Impressive Handling

Enclosed-axle swingarm offers optimized stiffness for improved toughness and excellent handling performance. Rubber swingarm pivot bushings provide excellent low-speed ride comfort and increased durability.

Engineered Tough

Plastic CV joint boots are durable and tear-resistant. Sealed steering-knuckle bearings improve steering performance and durability.

Optimal Ground Clearance

Generous ground clearance of 190 mm (7.5 in.) allows you to ride over rugged terrain with ease.

Stopping Power

Rear drum brake is located inside the right rear wheel for improved durability and increased ground clearance. Dual front hydraulic disc brakes with large 190 mm rotors provide strong and consistent stopping power.

additional features

Protective Bodywork

Durable bodywork provides excellent mud and debris protection. Full-length synthetic lower skidplate with integrated front brush guard protects against damage from rocks, sticks and other obstacles. One-piece tank/side cover allows easy access for maintenance with no tools required.

Strong Visibility

Twin-headlight system features 35-watt headlights with focused light distribution for improved visibility after dark. The headlight dimmer switch makes it easy to change between high and low beams to activate the top assist 50-watt light for more illumination when you need it or allowing it to be turned off while carrying a load on the front carrier.

Intuitive Display

Full-function instrumentation gives the dash a modern look while providing information at a glance. There’s even a Maintenance Minder system that notifies when it’s time for service.

Superior Comfort

Seat padding is both thick and soft for excellent comfort.

Pro-ConnectTM Rack System. Excellent Load and Towing Capacity

Pro-ConnectTM Rack System for accessories. Mount accessories directly and quickly to the rear or front rack of your Foreman using easy Pro-ConnectTM Rack System (no tools required). Our purpose-built line of Pro-ConnectTM accessories helps to keep your gear in place and more secure wherever you place your items on the rack while maximizing storage. Front and rear steel-tube carriers feature large steel plates and additional tie-down points for improved load security. Load capacity for the large front and rear carriers is 40 kg (88 lb) and 80 kg(176 lb) respectively. The heavy-duty trailer hitch has a 385 kg (850 lb) towing capacity.

Multi-functional

A host of optional accessories allow you to tailor your TRX520 to your needs.
