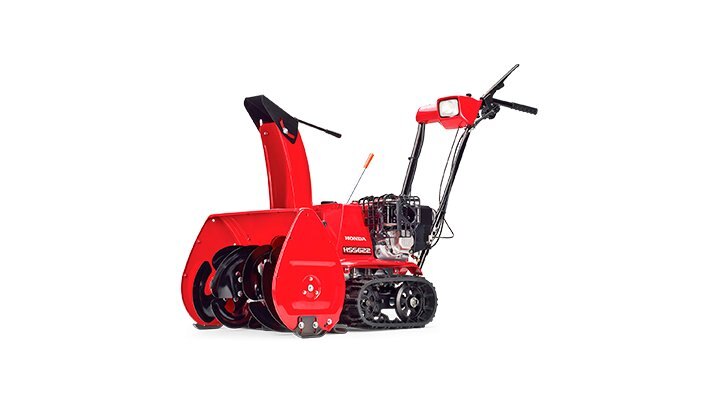

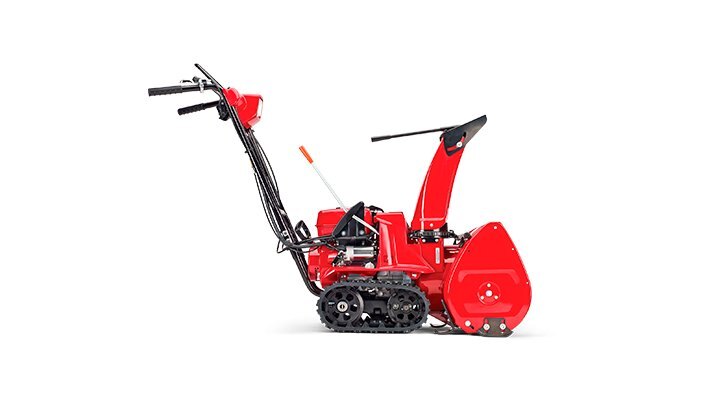

Honda 55cm (22in), Track Drive ES HSS622CTD1

Overview

Highlights

  • Drive Type: Gear Mesh Transmission

  • Starter: Standard (Electric) & Backup (Recoil)

  • Clearing Width: 55 cm (21.7 in)

  • Tonnes per Hour: Up to 37 Metric Tonnes/Hr (41 Tonnes/Hr)

55cm (22in), Track Drive ES Dual Stage Snowblowers

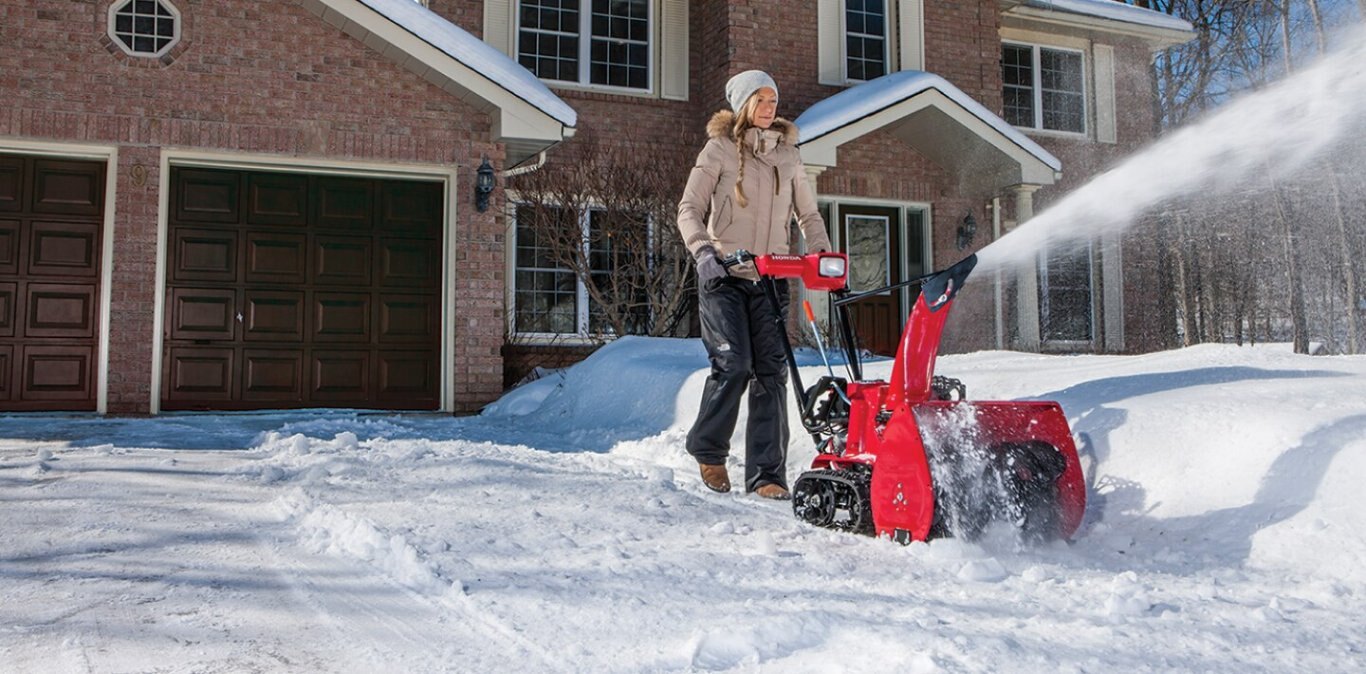

Power through snow with this Honda Dual Stage Track Drive ES snowblower. It clears a 55 cm (22 in) path and throws snow up to 14 m (46 ft) at a rate of up to 37 metric tonnes/hr (41 tonnes/hr).
Specifications
Model
HSS622CTD1
Category Name
Power Equipment
Year
2026
Sale Type
New
Manufacturer
Honda
features
Worklight
Honda_GX160T2,_OHV,_4-stroke_engine
2-speed_forward_transmission_plus_reverse
Handlebar_mount_remote_throttle_and_choke_controls
product and function
Speeds
2 forward / 1 reverse
Axle_Type
Track drive
Auger_Type
Steel
Drive_Type
Gear mesh transmission
Auger_Drive
Dry; multi-disc clutch
Auger_Diameter
30.5 cm (12 in.)
Auger_gear_box
SAE #90 gear oil
Chute_Material
Steel
Chute_Rotation
Manual lever
Clearing_Width
55 cm (21.7 in.)
Discharge_Type
Dual-stage
Auger_Oil_Capacity
0.16 Litre (5.6 fl. Imp. oz.)
Auger_Transmission
Screw gear
Deflection_Control
Manual lever
Chute_Turning_Radius
195°
Maximum_Ground_Speed
Forward (1): 22.2 m/min (72.8 ft./min) Forward (2): 52.8 m/min (173.2 ft./min) Reverse: 51 m/min (167.3 ft./min)
Intake_Housing_Height
42 cm (16.5 in.)
Auger_Height_Adjustment
3 position adjuster
Maximum_Throw_Distance†
14 m (46 ft.)
Clearing_Snow_Volume_Capacity_(Approximate)†
Up to 37 metric tons/hr (41 tons/hr)
engine and drive
Engine_Type
Honda GX160T2, 4-stroke, OHC, single-cylinder
Displacement
163 cc (9.9 CID)
Oil_Capacity
0.58 Litre (20.4 fl. Imp. oz.)
Oil_for_engine
SAE 5W30 API service classification SJ or later
Recoil_Starter
Standard (Back-up)
Ignition_System
Transistorized
Electric_Starter
Standard 12 VDC type (Battery)
Recommended_Fuel
Regular unleaded gasoline (87 Octane)
Fuel_Tank_Capacity
3.1 Litres (0.68 Imp. gal.)
Lubrication_System
Forced splash
Operational_Time_per_Tankful*
2.7 hours
dimensions and additional information
Dry_Weight
75 kg (165 lbs.)
Work_Light
Standard
Lighting_Coil
Standard
Overall_Width
56.5 cm (22.2 in.)
Overall_Height
115 cm (45.3 in.)
Overall_Length
145.5 cm (57.3 in.)
Distributor’s_Warranty_(commercial_use)
36-month
Distributor’s_Warranty_(non-commercial_use)
36-month
literature
Name Link
 Brochure            Download
