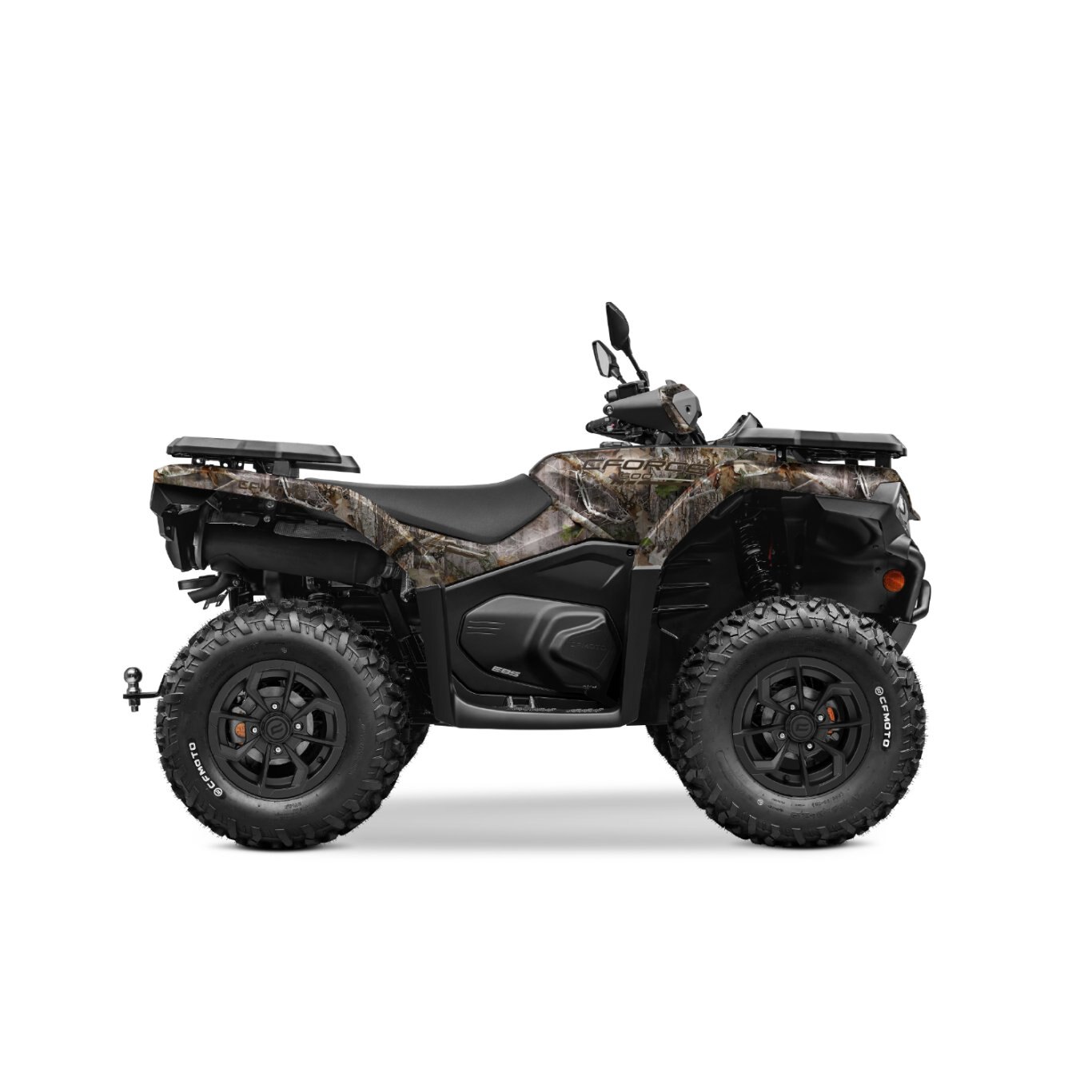

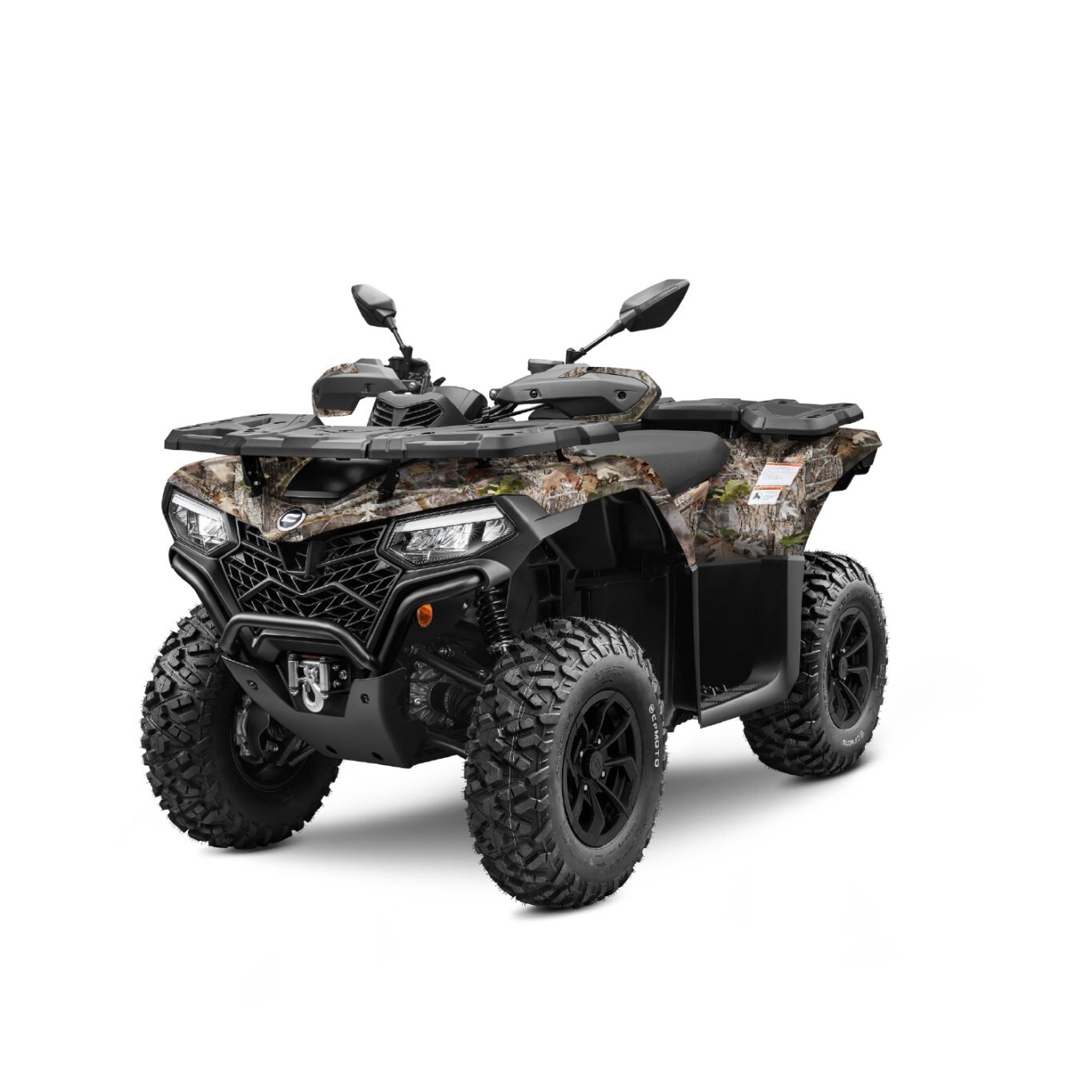

2026 CFMOTO CFORCE 500 True Timber Kanati

Overview

The 495cc engine of the CFORCE 500 adds more power and possibilities to the agile ATV platform. Standard features like a 2500 lb winch and a wide range of accessories available make the CFORCE 500 an ideal machine to take part in your adventures.

Specifications
Model
CFORCE
Category Name
ATVs
Year
2026
Sale Type
New
Manufacturer
CFMOTO
Color
True Timber Kanati
engine
Type
Single cylinder, liquid-cooled, 4-stroke, 4-valve
Battery
30 Ah
Starting
Electric
Max_Power
34 hp / 6800 rpm
Max_Torque
29 lb-ft / 6000 rpm
Compression
10.3:1
Displacement
495cc
Bore_&_Stroke
91 x 76.5 mm (3.58 x 3,01 in)
Cooling_system
Liquid
Engine_management
Fuel injected engine
size / weight
Wheelbase
1260 mm (50 in)
Curb_weight
343 kg (756 lbs)
Rack_capacity
Front 30 kg (66 lbs) Rear 60 kg (132 lbs)
Ground_clearance
262 mm (10 in)
Fuel_tank_capacity
17 L (4.5 gal)
Minimum_turning_Radius
2800 mm (110 in)
Length_x_width_x_height
2046 x 1125 x 1150 mm (80 x 44 x 45 in)
transmission
Clutch
CV-Tech IBC clutch system: variable transmission
Gear_Box
P / R / N / H / L (parking lock shift system)
Power_train
2WD / 4WD, electric locking differential
wheels
Rear_tires
25 x 10-12
Front_tires
25 x 8-12
Rear_wheels
Aluminum alloy (12 in)
Front_wheels
Aluminum alloy (12 in)
suspension and steering
Steering
Electronic Power Steering (EPS)
Rear_travel
180 mm (7.08 in)
Front_travel
180 mm (7.08 in)
Rear_suspension
Double A-arm independant
Front_suspension
Double A-arm independant
electronics
Horn
Lights
LED headlight with integrated turn signals
Ignition
Electronic
USB_Port
USB-C
Dashboard
5'' dashbaord
protection plan
Protection_Plan
EASY protection plan available
standard equipment
Rims
12-inch aluminum rims
Hitch
Winch
2,500 lbs
Side_mirrors
related product
Related_product_skus
CF600AZ-3SA, CF600AZ-3LA, CF400AZ-6S, CF600UZ
short description
Short_description
5-year limited warranty
